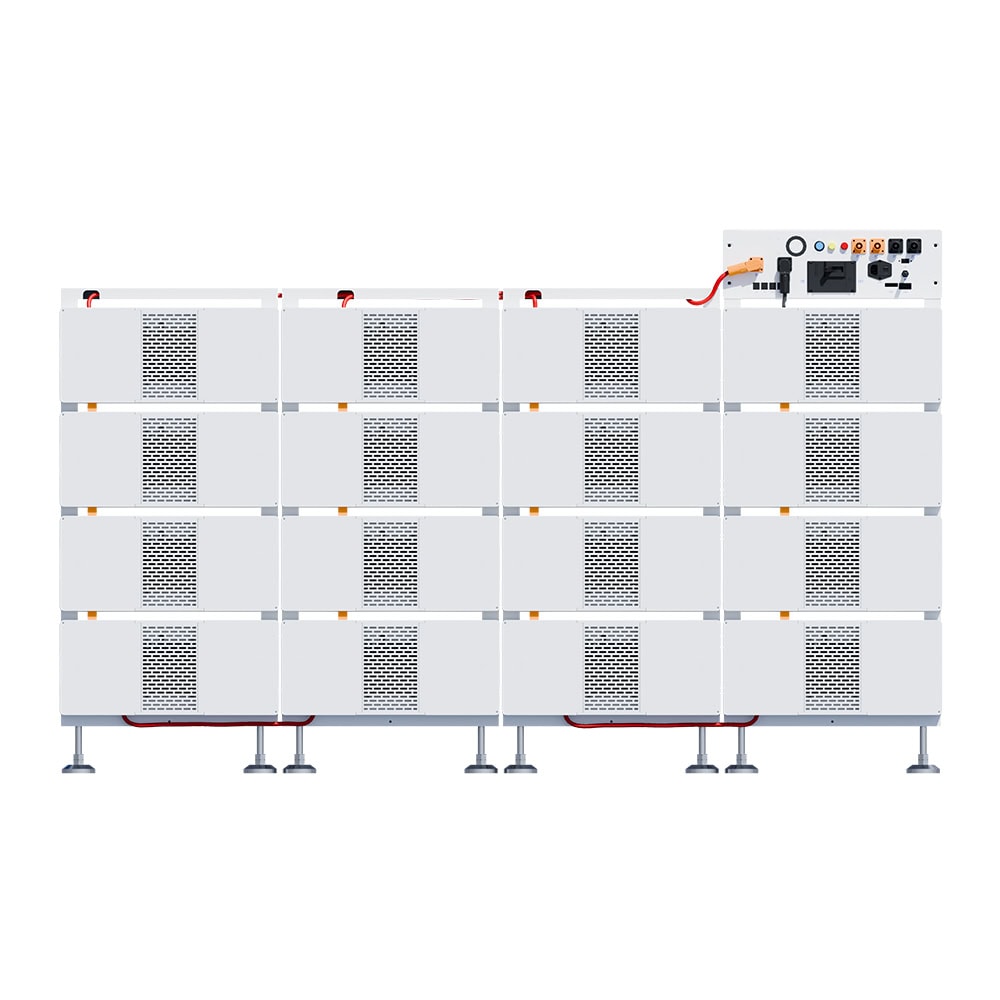

BOS-B Pro-A3 (AS, AF, AU, EU, LATAM) Battery for C&I Energy Storage

Modular and scalable: 5–16 battery modules in series; PCS scalable from 100 kW/125 kW up to 2.5 MW
High energy capacity: 257.23 kWh nominal, 231.51 kWh usable (recommended 90% DoD)
Fast switching: STS seamless transfer in ≤20 ms; independent high‑power paths for grid, diesel, and load
High efficiency: PCS efficiency ≈ 98.5%; MPPT performance > 99%
Robust battery module: 16.08 kWh per module, 51.2 V, 314 Ah
Rack‑mounted design: Compact footprint (2150 × 1305 × 800 mm); system weight ≈ 2240 kg

Technical Specifications

Model	BOS-B Pro-A3
Battery Chemistry	LiFePO4
Module Capacity	314 Ah
Battery Module Qty In Series	5~16 ( Optional )
Module Nominal Voltage	51.2 V
Max.Charge/Discharge Current	180 A
Battery Module Energy	16.08 kWh
System Weight Approximate	2240 kg
Dimension（W×H×D）	2150 × 1305 × 800 mm
